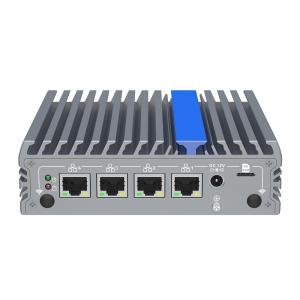

N100 Firewall Micro Mini PC 4 Lan Fanless Pfsense Router

Name: N100 Firewall Micro Mini PC 4 Lan Fanless Pfsense Router
Brand: SMATIPC
Price: 1 USD

China N100 Firewall Micro Mini PC 4 Lan Fanless Pfsense Router factory

Brand Name : SMATIPC

Model Number : IEXP-304

Certification : CE, ROHS,FCC,ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T,Paypal

Delivery Time : 5-8 work days

Packaging Details : Each pc for one neutral box

Product Collection : Intel Processor N-series

Code Name : Alder Lake-N

Processor : N100

Total Threads : 4

Max Turbo Frequency : 3.40 GHz

Cache : 6 MB

TDP : 6 W

Lan Port : 4xIntel 2.5Gbe Lan

Display : 1xHD-MI 1xDP

COM : 1xRJ45 Serial Port

Contact Now

N100 Firewall Micro Appliance Mini Pc 4 Lan Fanless Pfsense Router

Product Description

An 4 Lan Fanless Pfsense Router that is On 24x7 Working All The Time, With Characteristics:
- Intel alder lake N100 processor
- 4 Intel i226-V 2.5G LAN

- 3 M.2 Slots (support WiFi+4G/5G at the same time)
- 1 HDMI, 1 DP(Resolution Max.4096x2160 @ 60Hz)
- Support Pfsense, Linux,Win10, Win11

Specification

Parameter-IEXP-304
CPU	Intel Processor N100 (4 core 4 threads, max turbo 3.4 GHz)
Chipset	Alder Lake-N
RAM	1 x DDR4 3200 , Max 16 GB
Storage	1 x M.2 2280 slot, 1 x 2.5 inch HDD/SSD
I/O Port
Display Port	1 x HD-MI
Display Port	1 x DP
Network	4 x Intel i226-V 2.5G LAN
USB	4 x USB
COM	1 x COM (support console)
Audio	1 x SIM card slot
Power supply	1 x DC 12V

Drawing

Application

The IEXP-304 4 Lan Fanless Pfsense Router are suitable for a wide range of Firewall, VPN, network server, network security, router, ect .
